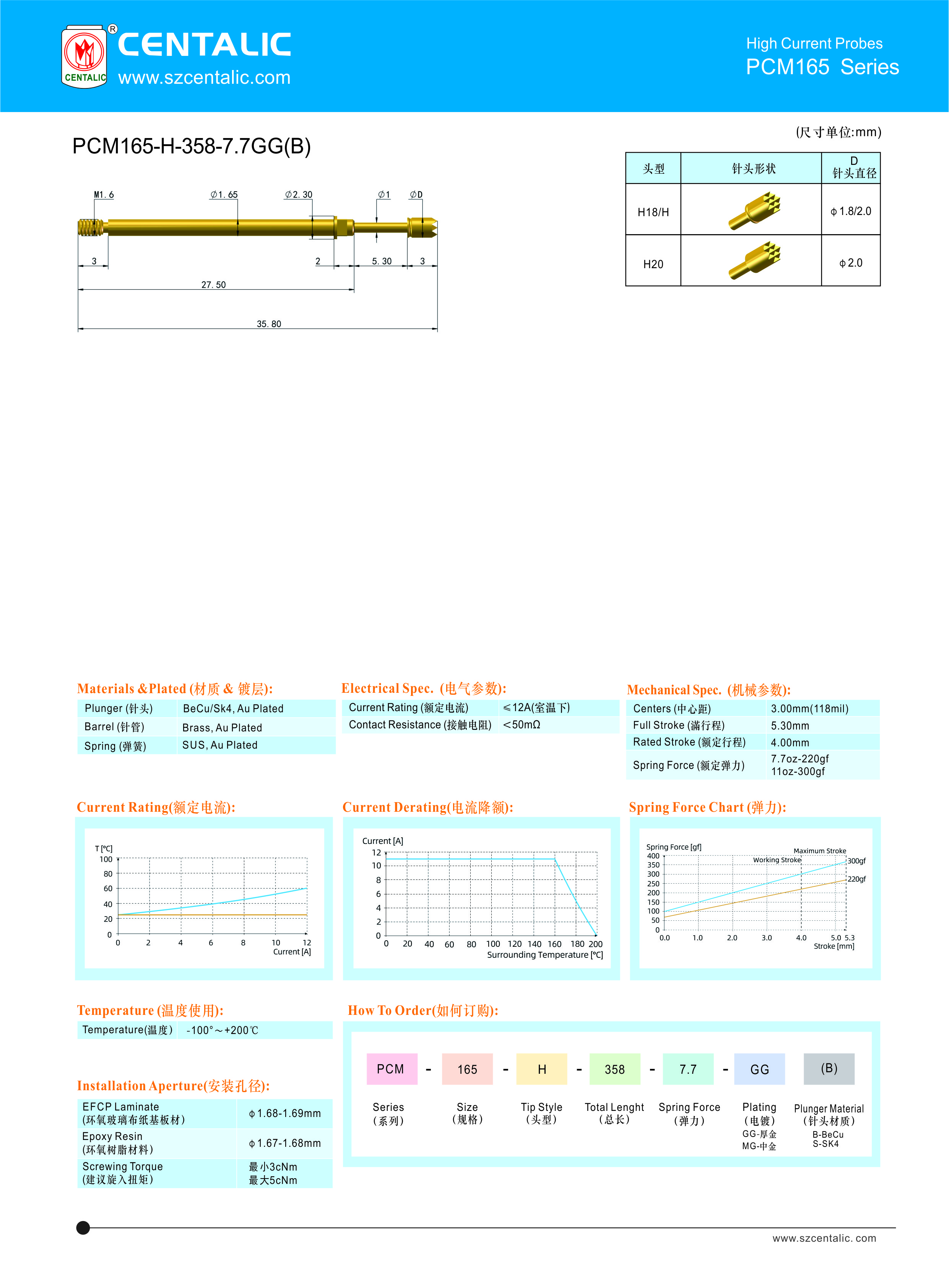

材质&镀层(Materials & Plated):
针头(Plunger):BeCu/SK4,Au Plated
针管(barrel):Brass,Au Plated
弹簧(Spring):SUS,Au Plated
电子参数(Electrical Spec.):
额定电流(Current Rating):≤12 A(室温下)
接触电阻(Contact Resistance):<50mΩ
技术要求(Specifications):
中心距(Centers):3.00 mm(118mil)
满 行 程(Full Stroke):5.30mm
额定行程(Rated Stroke):4.00mm
额定弹力(Spring Force):7.7oz-220gf/11oz-300gf
温度/安装孔径(Temperature/Installation Aperture):
温度(Temperature):-100°~+200℃
环氧玻璃布纸基板材(EFCP Laminate):φ1.68-1.69mm
环氧树脂材料(Epoxy Resin):φ1.67-1.68mm
建议旋入扭矩(Screwing Torque):小3cNm,[敏感词]5cNm
